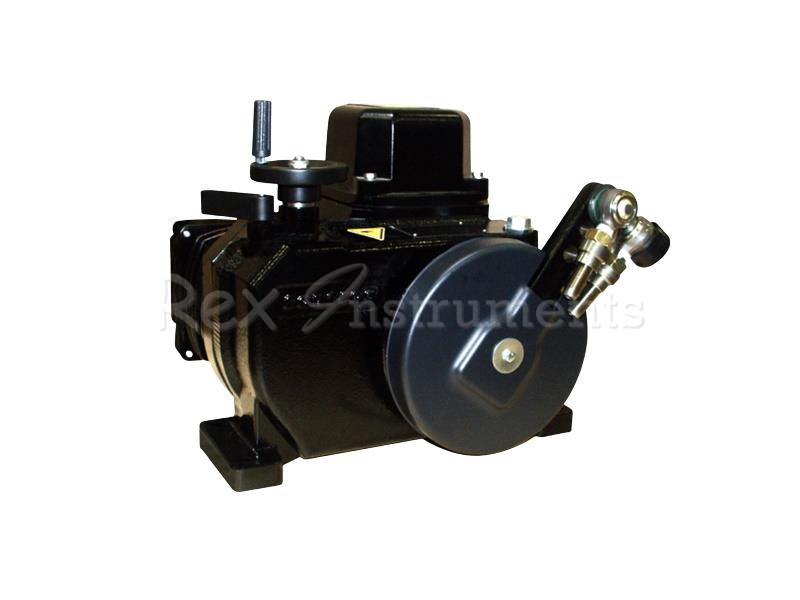

ABB Electrical rotary actuator RHD1250 / RHD2500 (Contrac)

ABB Electrical rotary actuator RHD1250 / RHD2500 (Contrac)

Product Description


Description

Data



Compact actuator for the operation of final control elements with rotary movement. For continuous positioning, rated torque 1250 / 2500 Nm (1000 / 1900 lbf-ft). The actuator thrust rod transfers the force directly to the final control element.

General specifications:
  • Process optimization thanks to maximum control precision
  • Maintenance-free up to 10 years
  • Electrical actuator for continuous positioning, three-point position control, or bus control
  • Stallproof without the need for position- or torque-dependent shut-off
  • Adjustable mechanical limit stops for defined operating range
  • Handwheel for emergency operation
  • Signal and power input only via separate, microprocessor-controlled electronic unit




  • Rated speed
RHD1250-12,0
–  12 to 900 s/90°
RHD2500-10,0
 –  10 to 900 s/90°
RHD2500-25,0
–  25 to 900 s/90°
  • Operating angle
 –  min. 35° / max. 300°
