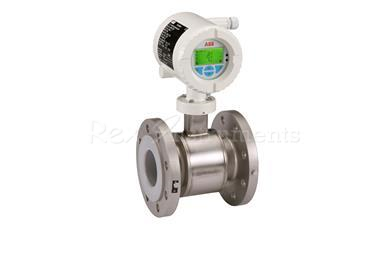

ABB Electromagnetic flowmeter HygienicMaster FEH630

Product Description

Designed to meet highest levels of demands for enhanced metering in the Food & Beverage industry, HygienicMaster FEH630 delivers more than reliable and accurate measuring values.
This innovative next generation of electromagnetic flowmeters provides a modular transmitter design combined with SmartSensor technology and built-in verification – technical advances that deliver a clear business and performance benefit.
The sensor-design ensures optimum protection from breathing and condensation.
Exchangeable process connections for maximum flexibility, simplified installation and reduce inventory. The sensor is CIP/SIP cleanable, FDA approved and certified in accordance with 3A.
Ethernet IP communication increases operational performance and delivers more real-time data for a better decision making.
HygienicMaster FEH630 is one of the most cost saving flowmeters on the market and ideally suited for all hygienic applications.

HygienicMaster FEH630 – The first choice for all hygienic applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.

Real-time diagnostic keep your process up and running

– Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
– Clear text messages simplify troubleshooting

In-built noise/grounding check

– Verify the installation is correct from day one
– Checks for proper grounding which is fundamental to an accurate flow measurement

In-built verification for highest confidence in your flow measurement

– Checking for sensor and transmitter Integrity
– No need to remove the flowmeter from the process

Simplicity of operation

– Automatic self-configuration sequence
– Incredibly easy to work with

Ethernet IP communication

– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in webserver, no additional software required for flowmeter configuration

General specifications:

Measuring value error– 0.4 % of rate, Option for 0.3% or 0,2%
Nominal diameter– DN 1 to 100 (1/25 to 4 in.)
Process connection– Weld stubs, threaded pipe connections, Tri-clamps, wafer-type, flanges, external threads, flanges in accordance with DIN/EN, ASME, JIS
Nominal pressure– PN 10 to 40, ASME CL 150, 300
Lining– PFA vacuum stable
IP rating– IP67 or IP68
Fluid temperature– Up to 180 °C (356 °F)
Communication– HART– PROFIBUS DP– Modbus– Ethernet (Ethernet IP, Modbus TCP, Webserver)
Process diagnostics– Empty pipe, gas bubbles, electrode impedance, conductivity, sensor temperature
Certificates– 3A, FDA approved materials
