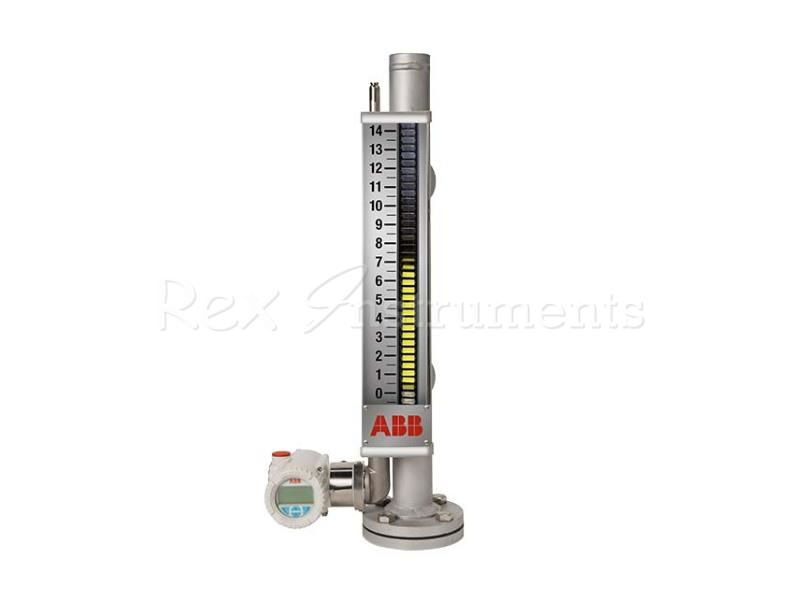

ABB Magnetostrictive Level Transmitter LMT200

ABB Magnetostrictive Level Transmitter LMT200

Product Description







High accuracy non-intrusive liquid level and interface level detection
The LMT Series of level transmitters is a modular range of field mounted, advanced microprocessor-based electronic transmitters, utilizing multiple sensor technologies. Accurate and reliable measurement of liquid level and interface are provided in even the most difficult and hazardous  industrial environments.

  • The LMT200 is based upon the magnetostrictive principle.
  • The device electronics generates a low energy current pulse at fixed intervals.
  • The electrical pulses create a magnetic field which travels down a specialized wire inside the sensor tube.
  • The interaction of the magnetic field around the wire and the magnetic float causes a torsional stress wave to be induced in the wire. This torsion propagates along the wire at a known velocity, from the position of the magnetic float and toward both ends of the wire.
  • A patented sensing element placed in the transmitter assembly converts the received mechanical torsion into an electrical return pulse.
  • The microprocessor-based electronics measures the elapsed time between the start and return pulses (Time of Flight) and converts it into a position measurement which is proportional to the level of the float.
Features:
  • Calibrated from the factory
  • High Accuracy: .01% of Full Scale or +/- 1.27mm
  • Never Requires Re-Calibration: Set It & Forget It
  • Easy setup with waveform display
  • Not affected by agitation, foam or emulsion layers
  • No oscilloscope required
  • Designed to Mount Externally to K-TEK KM26 or other Magnetic Level Gauge
  • Superior Sensor (Patent #5,473,245)
  • Local Indication with HMI Display
  • Dual Compartment Housing with Separate Field Terminal Compartment
  • Loop Powered to 15.24m (50ft) Probe Length
  • Total and/or Interface Level Measurement
  • Temperature Range: -195.5 to 426.6ºC (-320 to 800ºF) with options
  • Field Replaceable / Upgradable Electronics Module
  • Built-in RFI / EMI Filter
  • Digital Communications
  • Online Self-verification
Options:
  • Two Level Indications
  • Glass Viewing Window
  • 316 Stainless Steel Enclosure
  • Built-in surge protection







ELECTRONIC TRANSMITTER
  • Repeatability: ± 0.005% of Full Scale or 0.305 mm (0.012 in), whichever is greater
  • Non-linearity: ± 0.01% of Full Scale or 0.864 mm (0.034in), whichever is greater
  • Measuring accuracy: ± 0.01% of Full Scale or 1.27 mm (0.050 in), whichever is greater1
  • Supply voltage: 12 to 42 Vdc - 4-20mA HART loop powered
  • Output/Communications: 4-20mA HART7®
  • User Interface: Interactive display, DTM, EDDL with NE107 messaging
Power consumption: 4-20mA:
  • at 36.0 Vdc - 3.6mA 0.13 watts; 21mA 0.76 watts
  • at 12.0 Vdc - 3.6mA 0.043 watts; 21mA 0.25 watts
HART mode (4.0mA):
at 36.0 Vdc 0.144 watts
at 12.0 Vdc 0.048 watts

Maximum line resistance: 4-20mA:
  • at 36.0 Vdc and 21mA, 1142 ohms*
  • at 24.0 Vdc and 21mA, 571 ohms
  • at 12 Vdc and 21mA, < 72 ohms**
*Maximum allowable with HART® communication is 700 ohms
**See the current/resistance chart
  • HART mode (4.0mA):  < 650 to 700 ohms
  • Polarity protection: 4-20mA, Diode in series with loop, FOUNDATION Fieldbus and Profibus PA, polarity insensitive
  • Update rate: 10 measurements per second
  • Minimum measuring span: 76.2 mm (3.0 in), consult factory if smaller span is required
  • Damping: Field Adjustable, Range: 0.1 to 60 seconds
  • Alarm output: NE43, Software or Hardware selectable. Upscale (21 mA) or Downscale (3.6 mA)
  • Surge Suppression Integral surge suppression available with option code S1
  • Ambient temperature: -40 to 85ºC (-40 to 185ºF) Ambient2
  • Humidity: 0 to 100% RH
  • Linearization: 21 Point Table Available
  • Enclosure: Dual Compartment
  • Enclosure material: Cast Low Copper Aluminum with Powder Coat or 316 Stainless Steel
  • Device tag material: AISI 316 Stainless Steel
  • Electrical connection: Two M20 x 1.5 or two 1/2in. FNPT, adapters and bus connectors also available
  • Ingress protection: IP66, NEMA 4X
SENSOR TUBE
  • Material: Standard: 316/L Stainless Steel, Options:   Alloy 20, Hastelloy® C-276, FEP-TEFLON® jacketed, electropolished 316/316L Stainless Steel, others on request
  • Standard probe length: 304.8mm to 15.24 m (1 to 50 ft); 90 degree probes (SEH Option) 304.8mm to 7.62m (1 to 25 ft)
Probe length tolerance:
  • ± 3.2mm (0.125in) up to 3.0m (10ft); +/- 6.4mm (0.25in) up to 6.0m (20ft);
  • ± 9.0mm (0.35in) up to 9.0m (29.5ft); +/- 25.4mm (1.0in) up to 15.24m (50ft)
Mounting:  Stainless Steel Clamps for KM26 Magnetic Level Gauge Chamber Included; Optional Vibration Isolation Mounts

Notes:
1 Measurement accuracy is recorded at factory ambient conditions (23.88 °F +/-5.6 °C (75 °F +/-10 °F)) using a calibration magnet. Accuracy may be further influenced by other factors such as float hysteresis, installation, process conditions and ambient conditions.
2 Some agency approvals may differ.

 HART® is a registered trademark of the FieldComm Group
