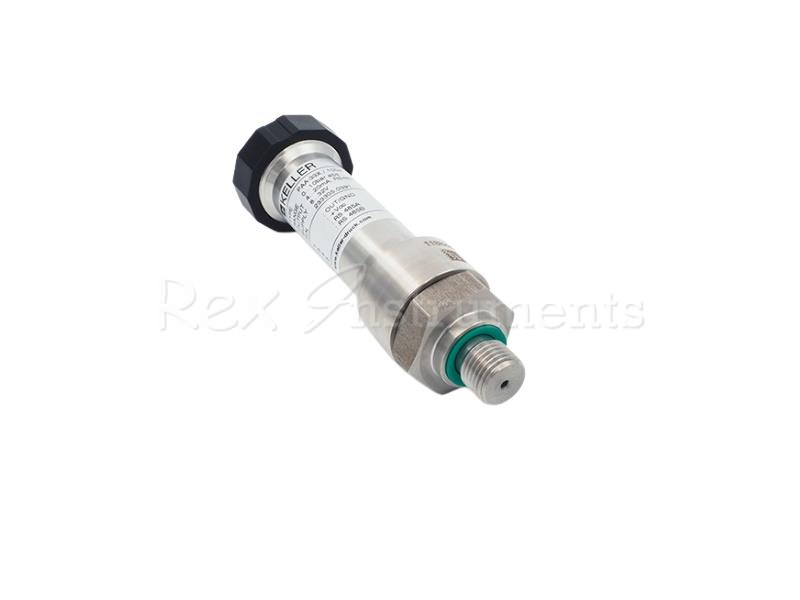

KELLER Series 33X Pressure Transmitter

KELLER Series 33X Pressure Transmitter

Product Description


Description

Data



The pressure transmitters of the 33X series use digital compensation with a mathematical model to achieve exceptional accuracy of 0,05 %FS – in the temperature range from 10 to 40 °C, this value even corresponds to the total error band. Additional measurements and selections can optionally be used to achieve a precision (and also, if calibrated in an accredited test laboratory, an accuracy) of 0,01 %FS. In addition to the digital RS485 interface, the X-line transmitters have a rangeable, analog current or voltage output.

Features
  • Maximum accuracy/precision down to 0,01 %FS
  • RS485 interface can be combined with analog interface
  • Analog interface rangeable by RS485 interface (turn-down)
  • Modbus RTU protocol for process values and configuration
  • Highest long-term stability

Technology
  • Insulated and encapsulated piezoresistive pressure sensor
  • High-quality pressure transducers and tried-and-tested mathematical compensation


  • Pressure Ranges 0…0,3 to 0…1000 bar
  • Accuracy ±0,05 %FS
  • Total Error Band ±0,1 %FS @ -10…80 °C
  • Interfaces RS485, 4…20 mA, 0…10 V
  • Temperature Range -40…125°C
