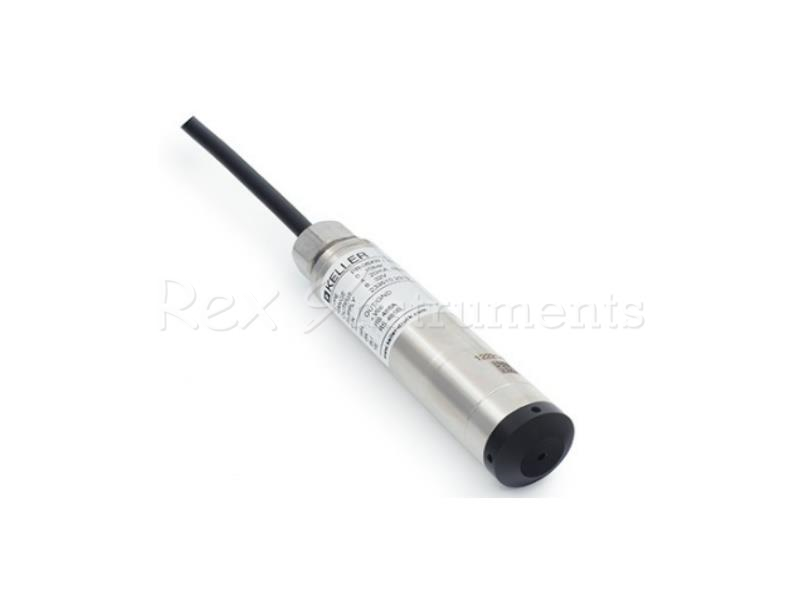

KELLER Series 36XW Pressure Level probe

KELLER Series 36XW Pressure Level probe

Product Description


Description

Data



In the high-precision level sensors of the 36XW series, the temperature dependence and nonlinearity are precisely compensated for in the microcontroller by means of a mathematical model. In addition to the RS485 interface, the measurement results can also be output via the integrated D/A converter as a rangeable analog signal. Extended lightning protection is also available as an option.

Features
  • RS485 interface can be combined with analog interface
  • Analog interface rangeable by RS485 interface (turn-down)
  • Modbus RTU protocol for process values and configuration
  • Excellent long-term stability
  • For many years of maintenance-free operation

Technology
  • Insulated and encapsulated piezoresistive pressure sensor
  • Robust stainless-steel housing
  • High-quality pressure transducers and tried-and-tested mathematical compensation


  • Pressure Ranges 0…0,3 to 0…30 bar
  • Accuracy ±0,05 %FS
  • Total Error Band ±0,1 %FS @ 0…50 °C
  • Interfaces RS485, 4…20 mA, 0…10 V
  • Special Characteristics Optimum accuracy
