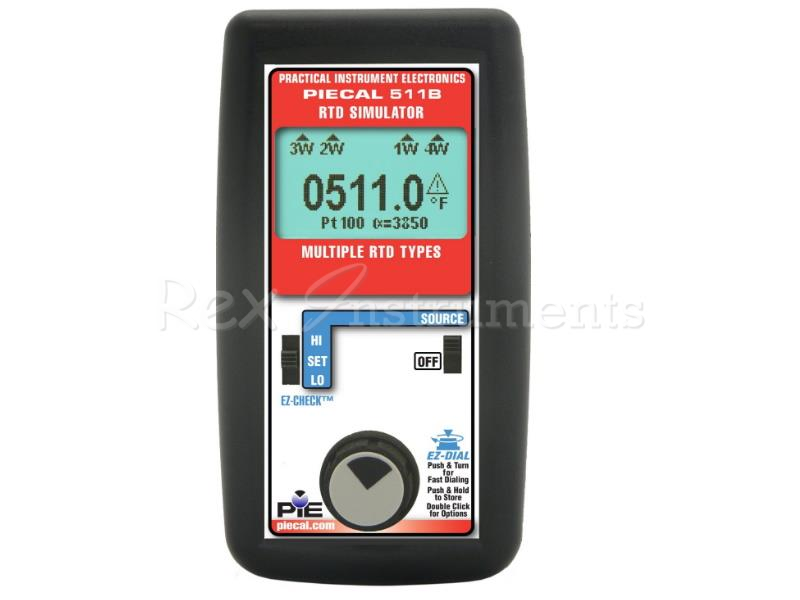

PIE 511B 10-Type RTD Calibrator

Product Description

Ten type RTD plus Ohms Simulator

The PIE Model 511B simulates RTD resistances into all types of process instruments including transmitters, recorders, controllers, alarms, data acquisition, and computer systems. No longer will you need to need to lug a decade box around or make errors reading RTD tables incorrectly. The PIE 511B is a superior replacement for decade boxes while eliminating errors caused by misreading RTD to resistance tables by allowing you to dial directly in temperature. The PIE 511B has better accuracy than many higher priced RTD calibrators.

Accurate to ±0.25°C (±0.5°F) for Pt 100 Ohm RTD’s with 0.1° resolution
Source 10 RTD curves with Direct Temperature Output or Ohms
Selectable °C or °F
Curves included for Platinum 100 and 1000 Ohm, Nickel 110 and 120 Ohm well as for Copper 10 and 50 Ohm
Guaranteed compatible with devices using pulsed excitation currents including PLCs, DCS, multi channel recorders, etc.
Works with a wide variety of smart transmitters including popular Rosemount and Honeywell models
EZ-Dial™ Knob with two dialing speeds makes adjusting output easy
EZ-Check™ switch can store settings for 0% and 100% span adjustments
Uses standard “AA” Alkaline Batteries
Superior battery life of 45 hours under typical continuous usage
Easy access to battery compartment
Lightweight and Rugged with a Solid Feel
Small and tough
Protected to 60V
Optional Rubber Boot, Carrying case and Test Data available
NIST Traceable Calibration Certificate included FREE

Continuously select output temperatures
Works will all instrument ranges across the full range in degrees C & F. Not limited to 11 temperature steps!
Works with Pt 100 & 1000 Ohm, Cu or Ni RTDs
One simulator replaces ALL the type and ranges for all models of the Altek 11
Instantly select output three temperatures
Flip the EZ-Check switch to calibrate zero, span and mid-point
LCD display with backlight
Easy viewing in dark locations
More resistant to accidental damage
Includes Certificate of Calibration
All PIE Calibrators come with a free signed and dated certificate. Altek calibrators come only with an unsigned Statement of Calibration Practices with a certificate of calibration available for an extra charge.
