Rex Instruments PROCOMSOL Procomsol TAB-PC-R-USB, Windows Rugged Tablet HART Communicator Kit, USB

| Cancel

ProComSol develops HART communicators for mobile device software that bridges the gap between HART Protocol devices, allowing for configuration, monitoring, calibrating, and troubleshooting of HART instruments in industrial plants.

home > Brands> Procomsol TAB-PC-R-USB, Windows Rugged Tablet HART Communicator Kit, USB

Procomsol TAB-PC-R-USB, Windows Rugged Tablet HART Communicator Kit, USB

Product Description

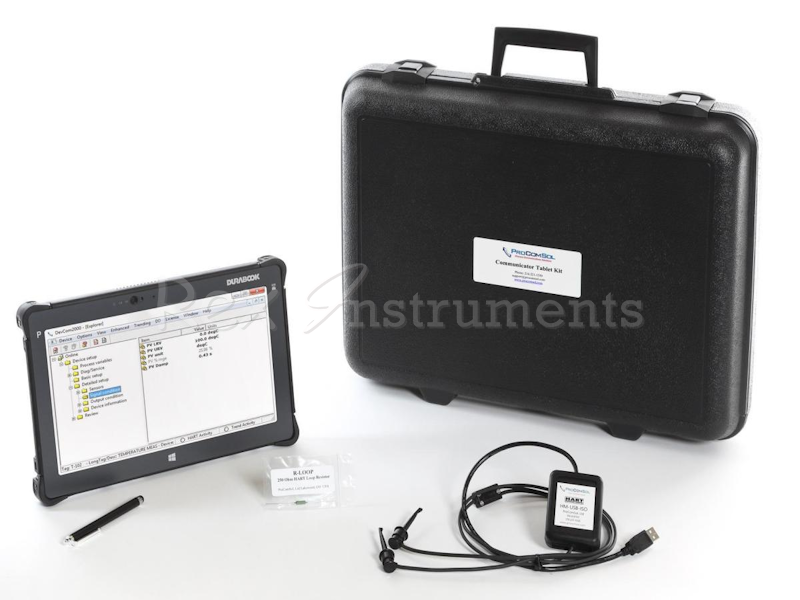

TAB-PC-R-USB, Windows Rugged Tablet HART Communicator Kit, USB

Combines all components needed for Rugged cost-effective HART Hand-Held Communicator including a USB HART modem.

DevCom2000 HART Communicator software bundled with a USB Power HART Modem and a Rugged Durabook R11 Tablet.

Windows Rugged Tablet
Modem supplies power to the HART transmit
Complete HART communicator
For rugged applications
1 Year warranty

What's included:
DevCom2000 HART Communicator Software
HM-USB-ISO USB HART Modem
Rugged Durabook R11 Tablet
Complete Device Descriptor (DD) library
One year Update Subscription (SUB-1YR)
250 Ohm Loop Resistor
Rugged hard plastic case with carrying handle

SOFTWARE
DevCom2000, HART Communicator Software, Windows
Windows software used to perform complete HART device configurations using your Windows Desktop, Laptop, or Tablet PC.

Comes with ALL the latest registered Device Descriptors (DD’s) from the FieldComm Group (FCG)
Complete access to all features of the device DD including Methods
Monitor PV, Multi-variables, and Device Status
View and edit device Variables
Windows Explorer menu layout
Device menu structure easy to navigate
Get to the information you want quickly
Communication and Event Logs
Save device configurations as text and PDF files for documenting the device
Write saved device configurations to devices (device clone)
Perform Calibration Checks
Save calibration and device configuration data to the cloud
Trend process variables as well as any other parameter associated with the device
Complies with the Enhanced DDL standard (IEC 61804-3)
Supports HART 5, 6, 7, WirelessHART devices, and HART-IP
No tag limits!
1 Year of free DD library and program updates
1 Year warranty

MODEM
HM-USB-ISO, HART Modem, USB
Perform HART communications between a HART transmitter and a Windows device using USB.

1500 Vdc Opto Isolation between HART and USB circuits
Supports all USB versions
Integral standard USB type A connector
Integral heavy duty HART Mini-grabber connectors
Meets FieldComm Group specification HCF_SPEC-54
Self powered, no external power supply or batteries needed
Rugged ABS plastic enclosure with rubber boot
Boost feature for low resistance loops
Supports Windows 7 through 11
Supports 32 and 64 bit Windows
1-Year warranty

TABLET
Rugged Durabook R11 Tablet
Rugged Durabook R11 tablet with Bluetooth, Windows 11, WI-FI, 8GB RAM, 128GB Storage Memory, 11.6 inch Touch Screen.
