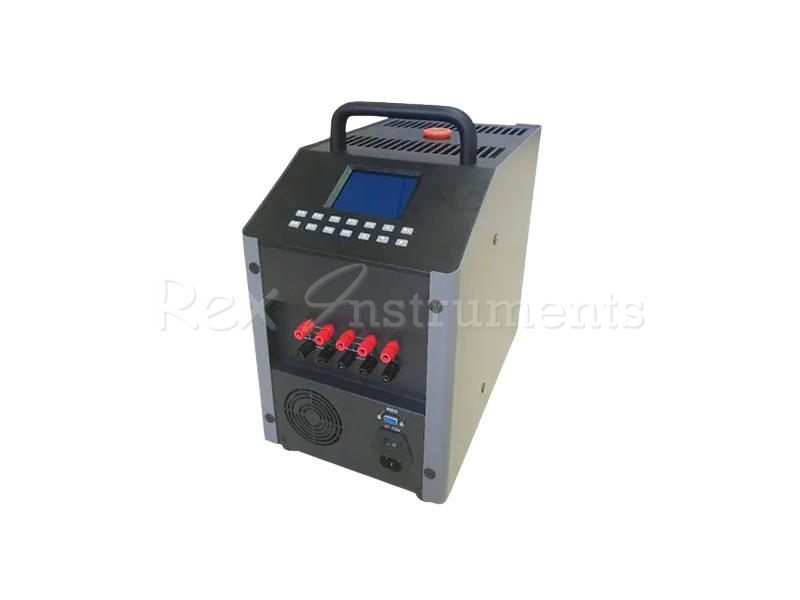

SPMK313A Portable Dry Block Temperature Calibrator 155 ℃

Product Description

Dual-channel high-precision DC current, voltage and resistance signal measurement
6-digit digital display, resolution of 0.001℃, large screen display
Digital temperature control, rapid temperature rise and fall, convenient setting, good temperature control stability, and soaking block can be customized
Good horizontal temperature field and good vertical temperature field
series of protection functions such as load short circuit and sensor protection in the furnace;
Small size, light weight, easy to carry, no pollution
DC24V power supply

MODEL SPMK313A

Temperature Range (-30～155)℃ (Ambient temperature 25℃)
Deviation ±0.15℃
Display Resolution 0.001℃
Insert Depth 170mm
Diameter of Thermal Block Ø25mm
Standard block insertion diameter Ø6、Ø8、Ø10mm
Temperature difference between holes ≤±0.05℃
Axial temperature field: Temperature change within 40mm from the bottom of the soaking block hole ≤0.5℃

MODEL SPMK313B

Temperature Range (33～660)℃
Deviation ±0.5℃
Display Resolution 0.001℃
Insert Depth 170mm
Diameter of Thermal Block Ø25mm
Standard block insertion diameter Ø6、Ø8、Ø10mm
Temperature difference between holes ≤±0.05℃
Axial temperature field:Temperature change within 40mm from the bottom of the soaking block hole ≤0.5℃
