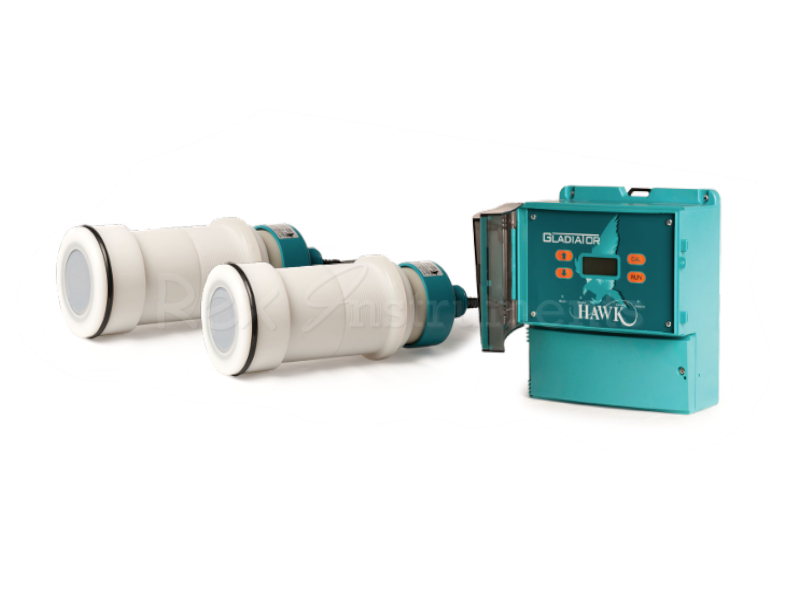

Hawk Measurement Gladiator Acoustic Switch

Hawk Measurement Gladiator Acoustic Switch

Product Description






The Gladiator Acoustic Switch can be used for blockage detection, barrier detection, machine detection / protection and point level measurement, and detection of objects or material between two points.

Principle of Operation
The Gladiator Acoustic Switch uses Acoustic Wave technology in a new Sender / Receiver form for blocked chute detection and anti-collision for heavy machinery. The Gladiator Amplifier powers two AW Transducers which use special HAWK developed software where both units pulse and receive each otherÍs Acoustic echoes. When the path between the Transducers is blocked, the units immediately detect the presence / absence change of the return signal and trigger a communications relay for indication or control purposes. The Transducers work both together and independently to detect pulse interference giving twice the application security. HAWKÍs Acoustic Wave Transducers are self cleaning. The Acoustic Switch is designed for continuous operation in dusty, wet environments where other technologies fail. The power of each pulse (pressure wave) blows the water, moisture and build-up off the face of the diaphragm.

Certifications
ATEX Grp II Cat 3 GD T85°C, IP67 Tamb -40°C to 70°C

No contact with the product required
Self cleaning transducers
Heavy duty titanium version available
Designed for dusty, wet environments
LCD setup / diagnostics on remote amplifier
Simple
1-minuteÍ setup

Primary Areas of Application Liquid Level:
Tank or Vessel
Measuring Range: 10cm (4in) - 300m (984ft)
Communications: GosHawk, Modbus, Modbus over Ethernet TCP/IP, 4-20mA
Maximum Operating Pressure: 10 Bar (145psig)
Mounting: 1" BSP, 1" NTP
