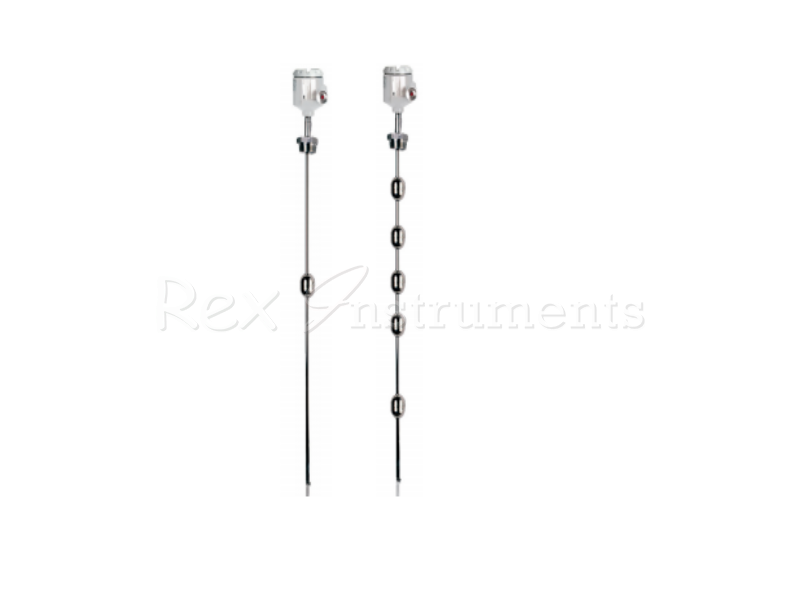

ABB Buoyancy Level Switch MS50

Product Description

The MS50 is used for top of tank mounting. The MS50 has a 316SS float, 316SS rigid float and two switches for high and low detection. Typical applications where the MS50 is used are butane, propane, oil, chlorine, acids, water and interfaces.

The K-TEK MS50 consists of latching reed switches totally enclosed in a stainless steel chamber (other materials available) and a float containing a magnet in which the switches will detect. The sensing element (chamber) and the float are normally inserted into the tank through a top process connection and can be mounted to the tank via flange, if desired. However, the unit can usually be mounted via a single 2" MNPT process connection. In addition, the float can generally be installed thought the same 2" process connection. A stilling well may be required if the process liquid is in a turbulent state. The MS50 will provide for the detection of start/stop trip points of either total or interface level in virtually any vessel. These trip points can be used for alarms or to activate a pump motor starter relay.
